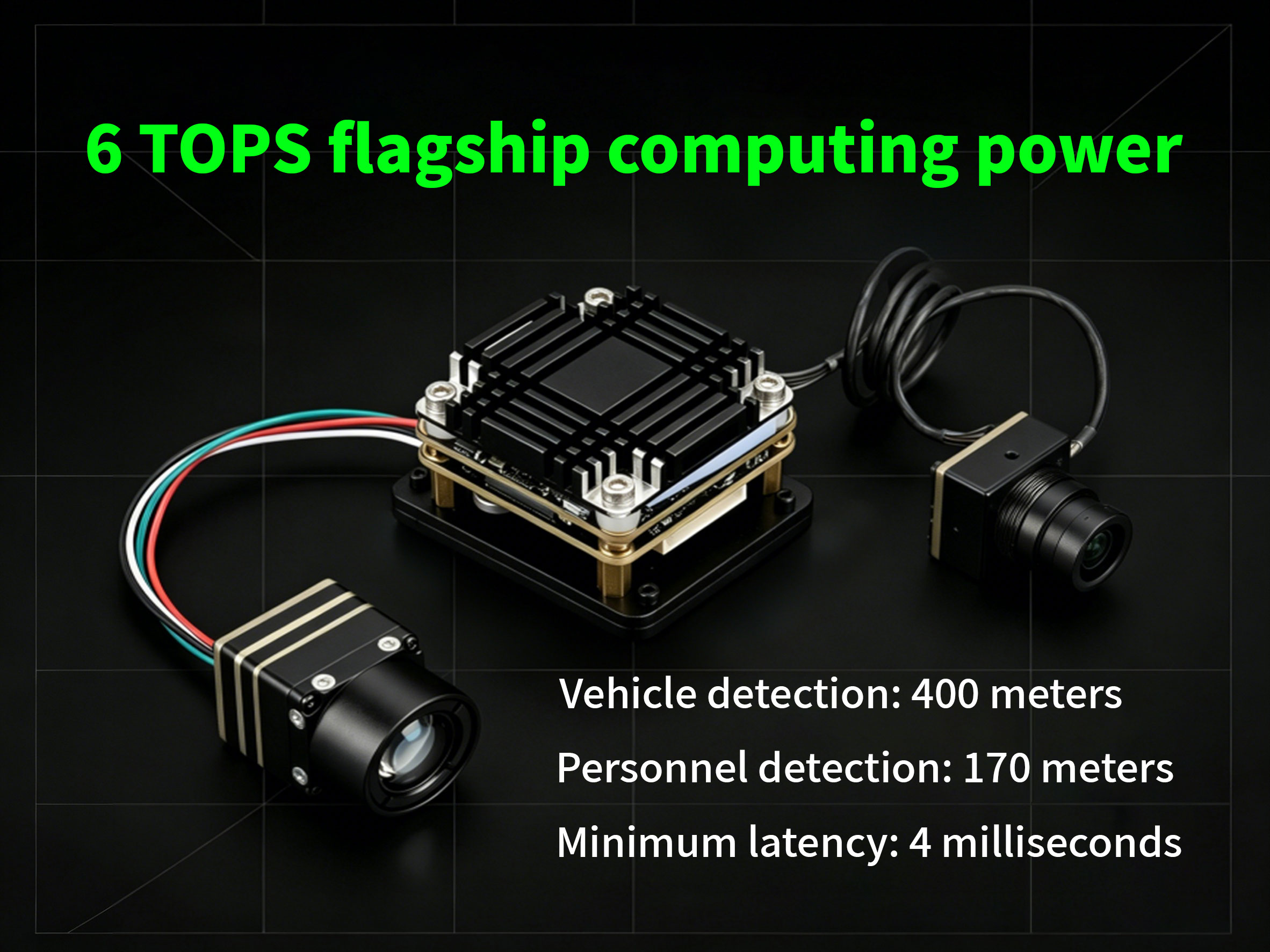

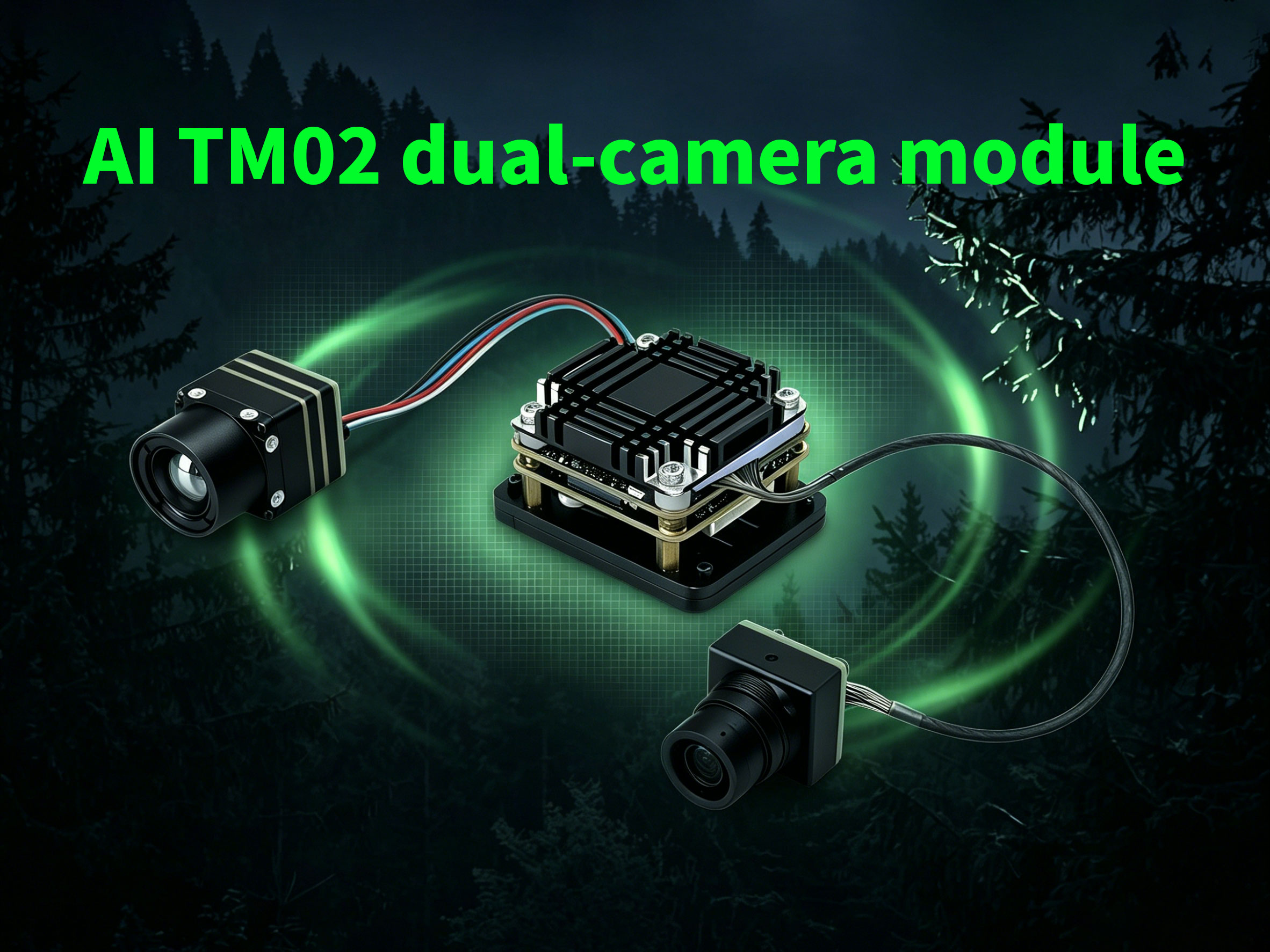

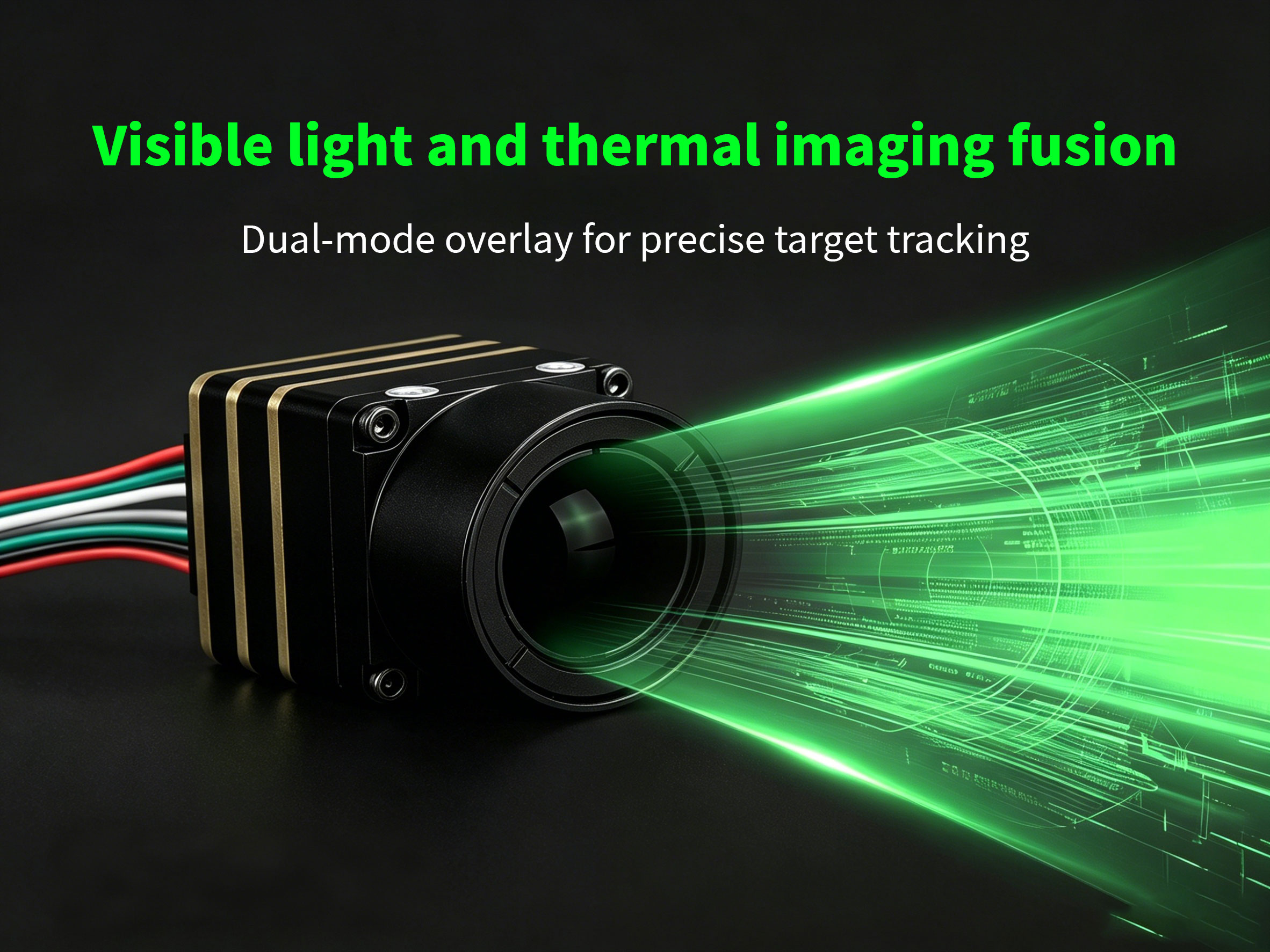

The AI TM02 dual-spectrum camera module is a "visible light + thermal imaging dual-spectrum AI target tracking module" specifically designed for drones. Its core positioning is to provide all-weather, intelligent target detection and tracking capabilities for quadcopters/industrial drones.

Basic Parameters Model: AI TM02 Dual-Lens Camera Module Model selection: EO HD + thermal imaging Target type: person + vehicle Detection range: Vehicles: 400 meters; People: 170 meters Target pixel: 10*10 pixels Dynamic speed: 600 kilometers per hour Functional features: route pre-mapping/lost re-acquisition Target number: 120 Picture-in-picture mode: supported AI processing board parameters SOC computing power: 6 TOPS CPU: A76 (2.4GHz) + A55 (1.8GHz) Control protocol: CRSF Supported flight controllers: BetaFlight/ArduPilot Operating voltage (V): 9-16V R size: 45x45x26 mm Installation dimensions: 42.5x42.5mm EO HD wide-angle camera parameters Sensor: 1/1.8 inch Focal length: 4.37 millimeters Field of view: Diagonal: 131.6° Horizontal: 109.0° Vertical: 57.5° Illumination: 0.0001 lux Resolution: 1920*1080@120Hz / 720P@240Hz Camera size: 25.5*19.5*19.5 mm Thermal imaging module parameters Sensor: 8-14 micrometers Focal length: 9.1mm Pixel size: 12 micrometers Field of view: Diagonal: 61.8° Horizontal: 47.7° Vertical: 38.2° Resolution: 640*512@50Hz Interface: USB
