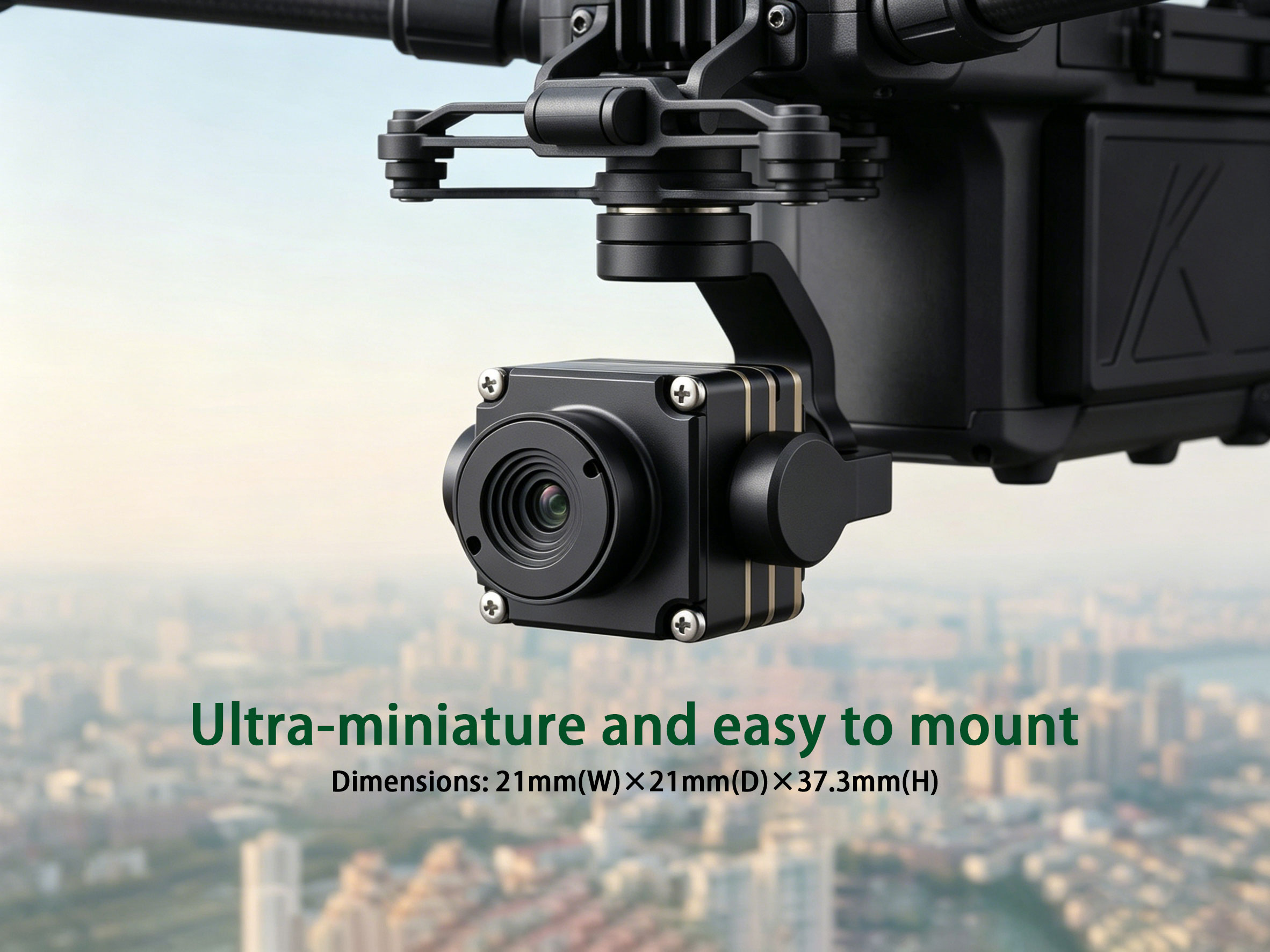

The T-C256 thermal imaging module is an uncooled infrared thermal imaging core module, belonging to the category of micro infrared imaging core components. It is used to convert infrared radiation into visible images and serves as the core component of thermal imaging equipment.

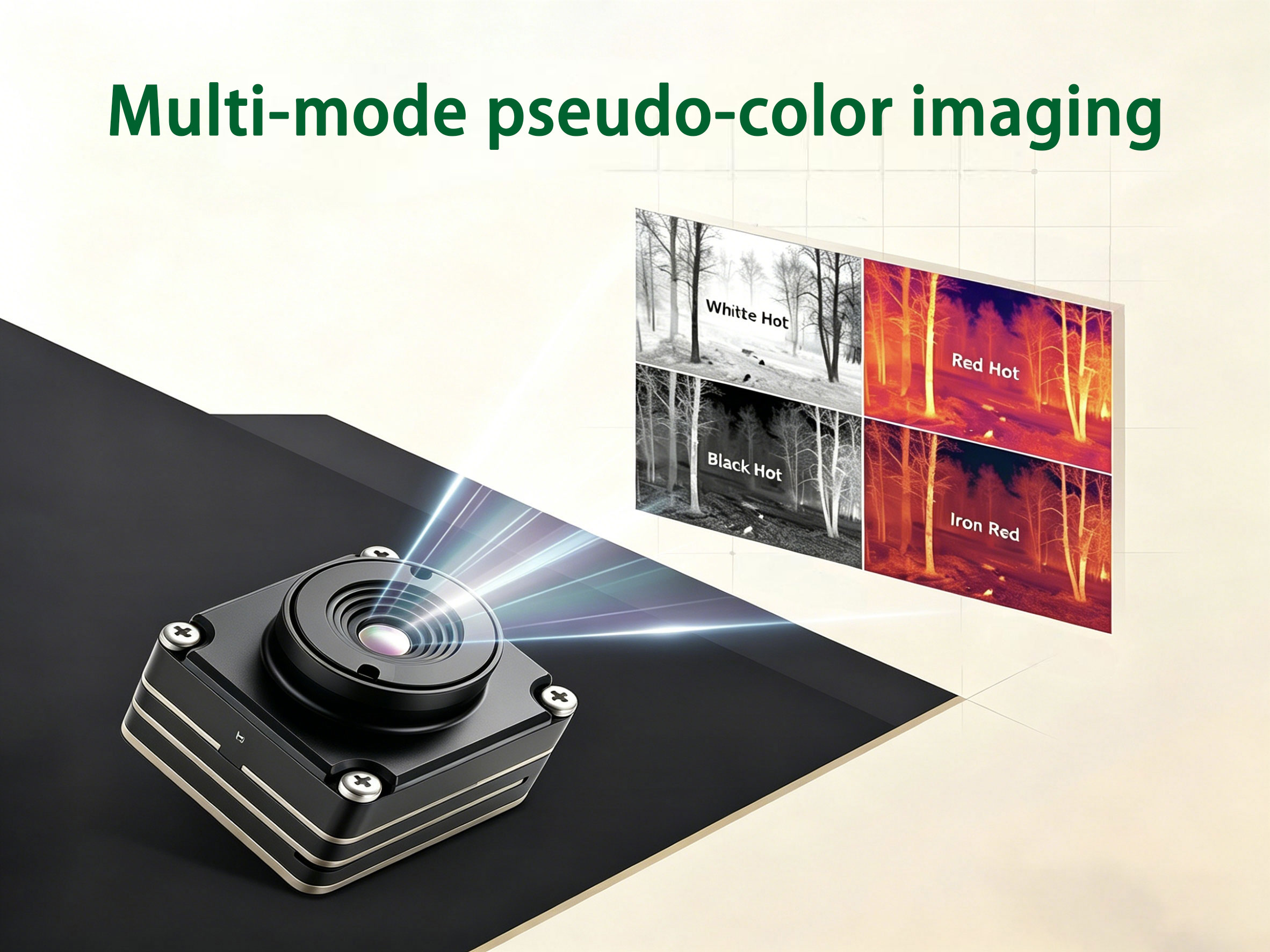

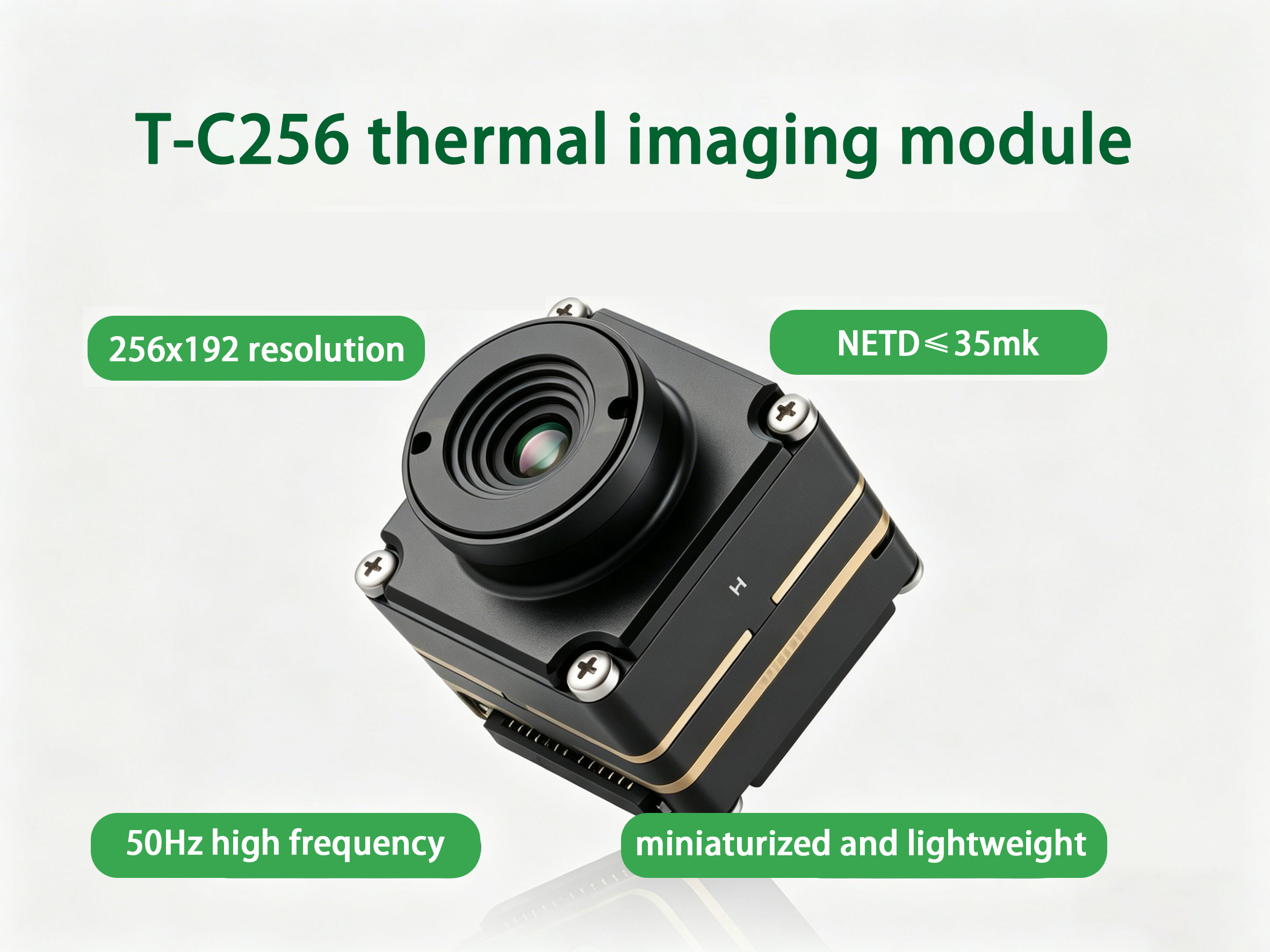

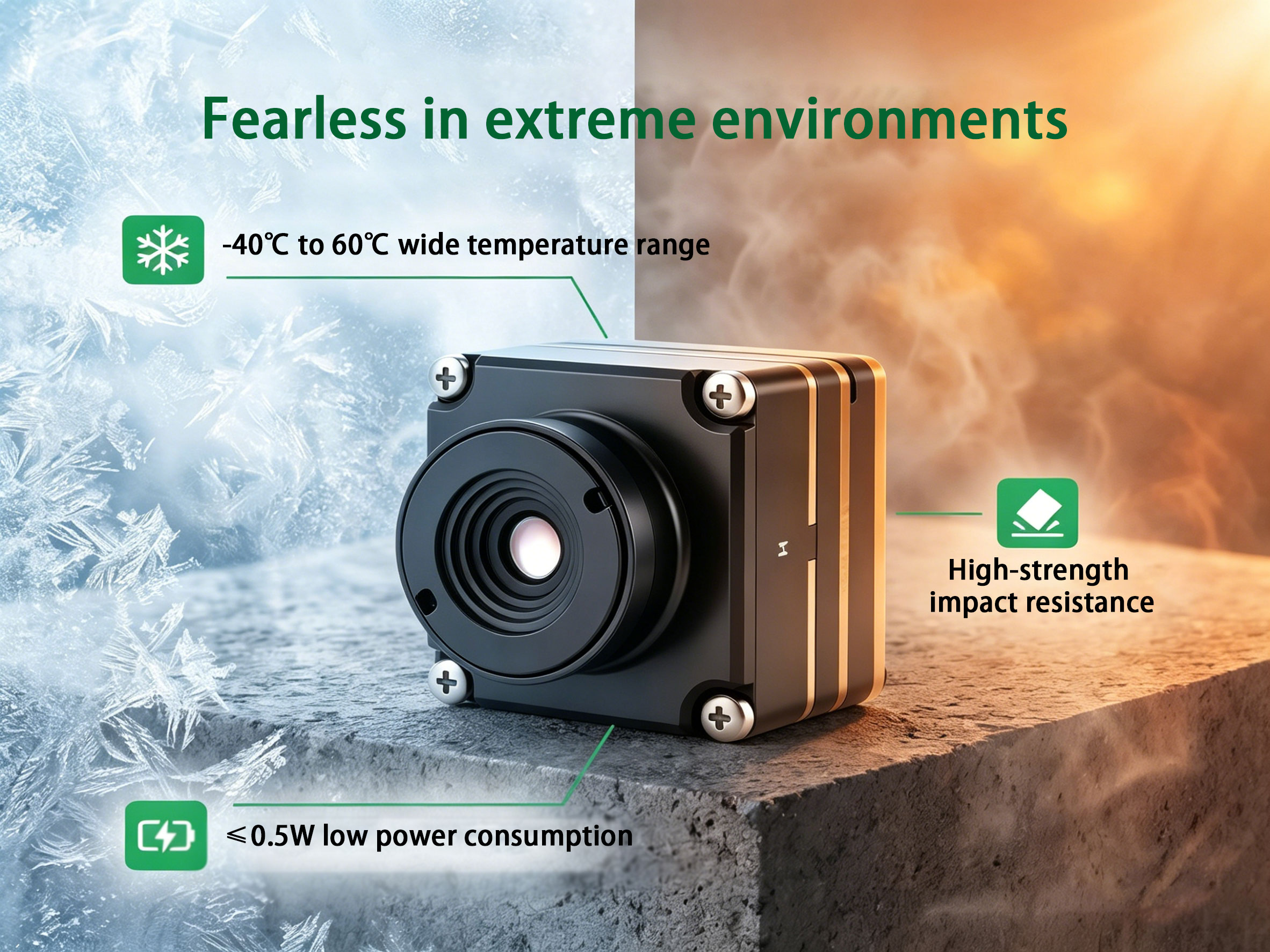

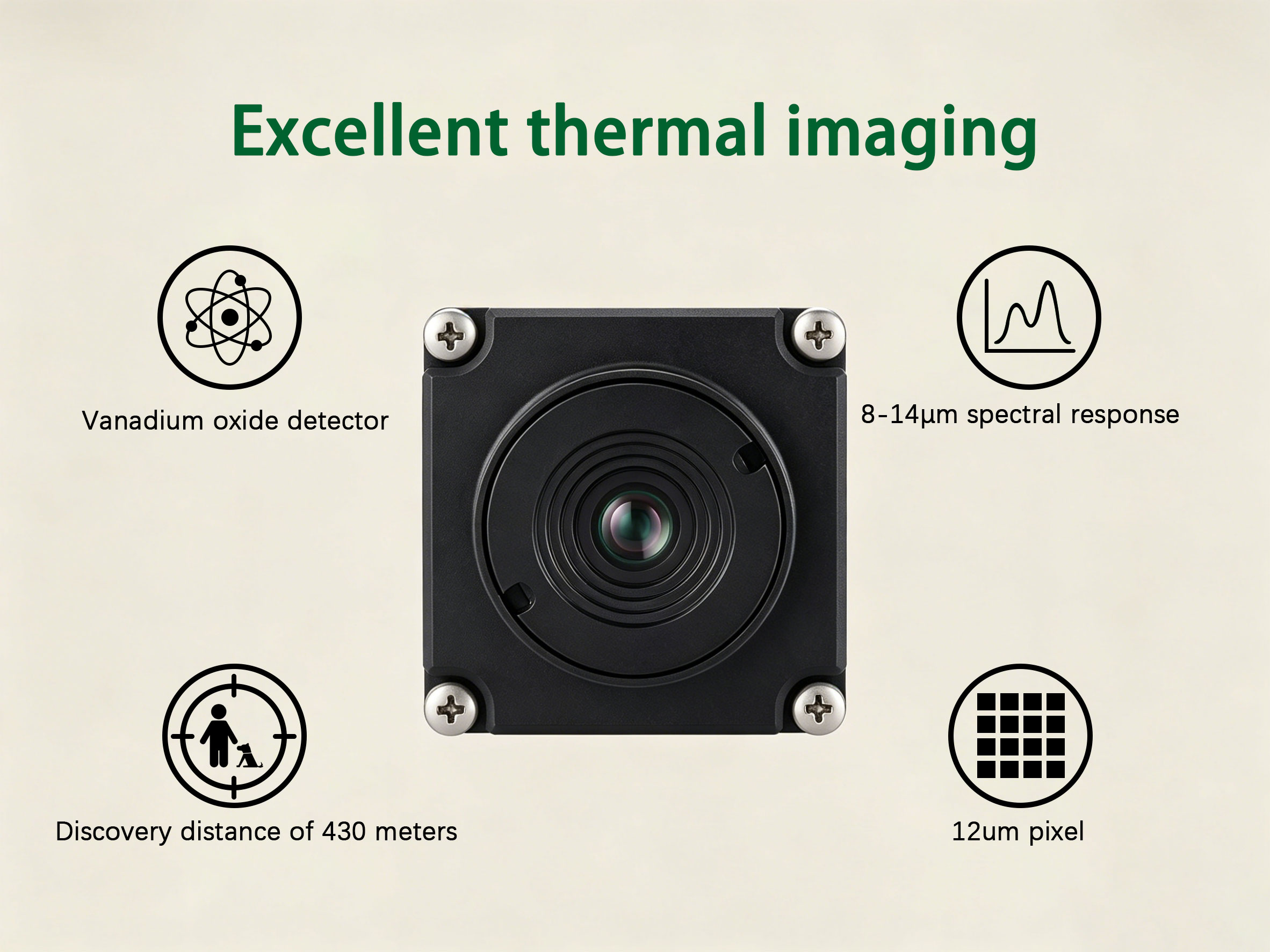

The lens parameters are as follows: Lens focal length (mm): 4mm/9mm Field of view: 4mm: 43.3*32.8°; 9mm: 19.4*14.6° Discovery distance: 430m Recognition distance: 100m Distance resolution: 54m The detector parameters are as follows: Sensor type: Vanadium dioxide uncooled focal plane detector Spectral response: 8~14um Pixel: 12um Resolution: 256*192 NETD：≤35mK(f/1.0 50Hz300K) Detector frame rate: 50Hz The interface parameters are as follows: Image interface: USB (UVC), CVBS (PAL system) Control interface: UART (Baud rate: 115200) Interface specifications: SMD, P=0.8mm-4P, SMD, P=1.25mm-5P The functional parameters are as follows: Pseudo-color modes: White Heat (default mode), Black Heat, Red Heat, Iron Red, etc Image enhancement mode: supports adjustable settings Image denoising: adjustable support Brightness: Adjustable Contrast: Adjustable Electronic zoom: 1X~4X zoom, with a step size of 0.1 Barrier mode: with barrier, automatic barrier setting Pot lid calibration: Supports user-level host computer Non-uniformity Correction (NUC): Supports user host computer The physical characteristics are as follows: Power supply input: USB (5V), CVBS (4.5-18V) Operating temperature: -40°C~+60°C Power consumption: ≤0.5w (default) Impact: Vibration: Sinusoidal vibration, 10m/s2, 3-axis; Impact: Half-sine wave, 15g/11ms, 3-axis, 6-direction Weight: 30g Size: 21mm*21mm*37.3mm
