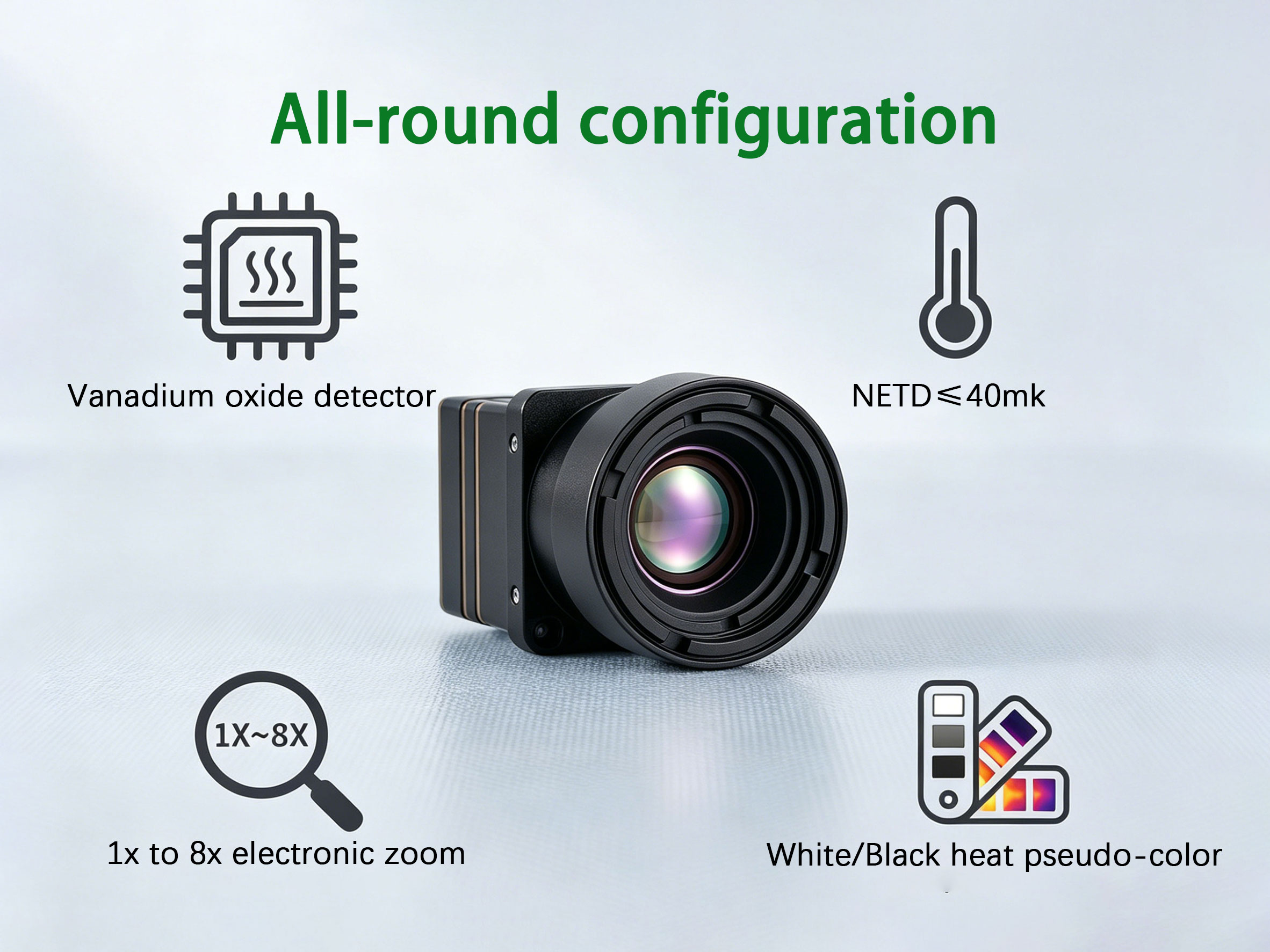

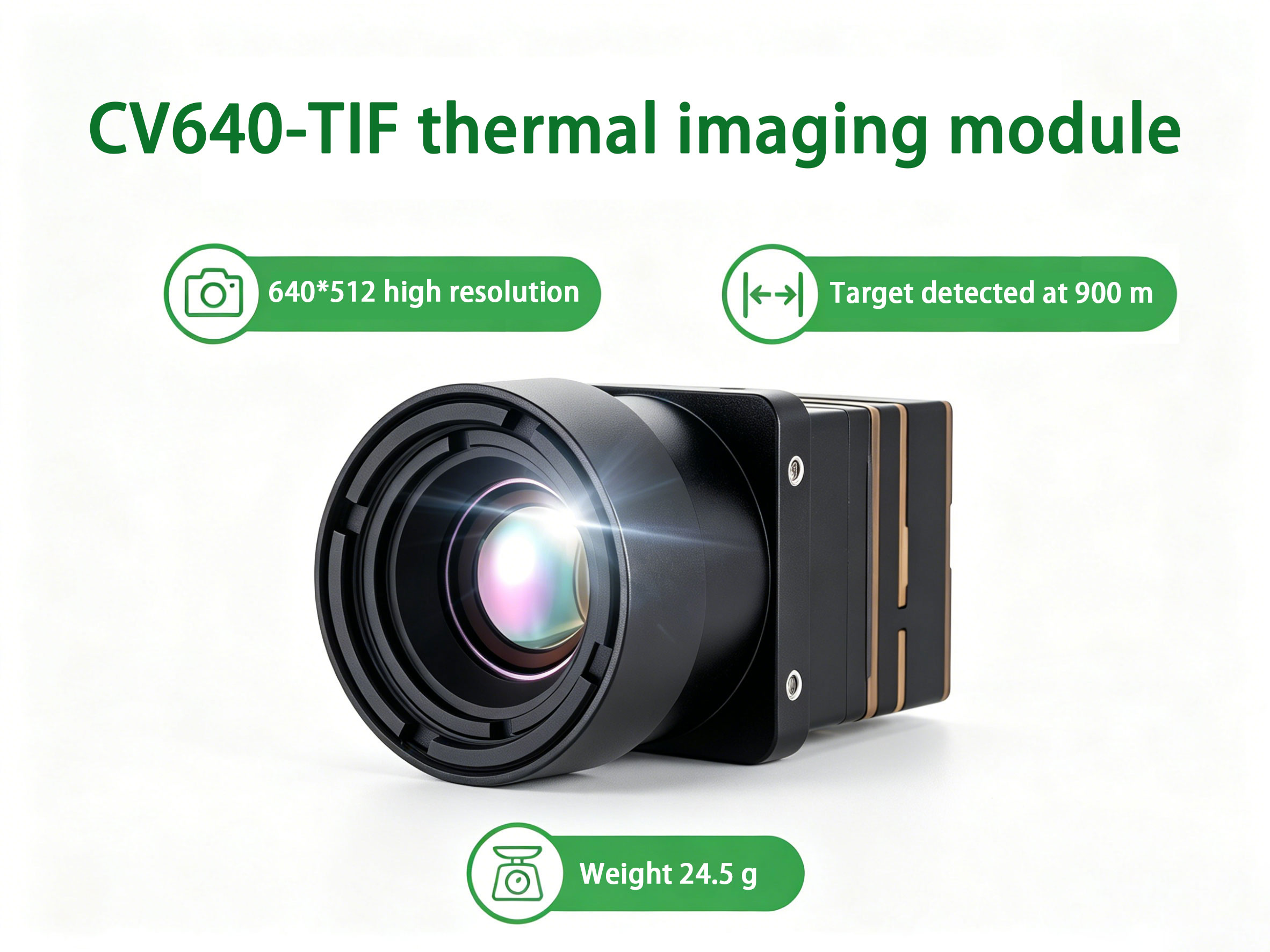

CV640-TIF thermal imaging is an uncooled infrared thermal imaging core module, which belongs to the micro-infrared imaging core component. It is used to convert infrared radiation into visible images and is the core component of thermal imaging equipment.

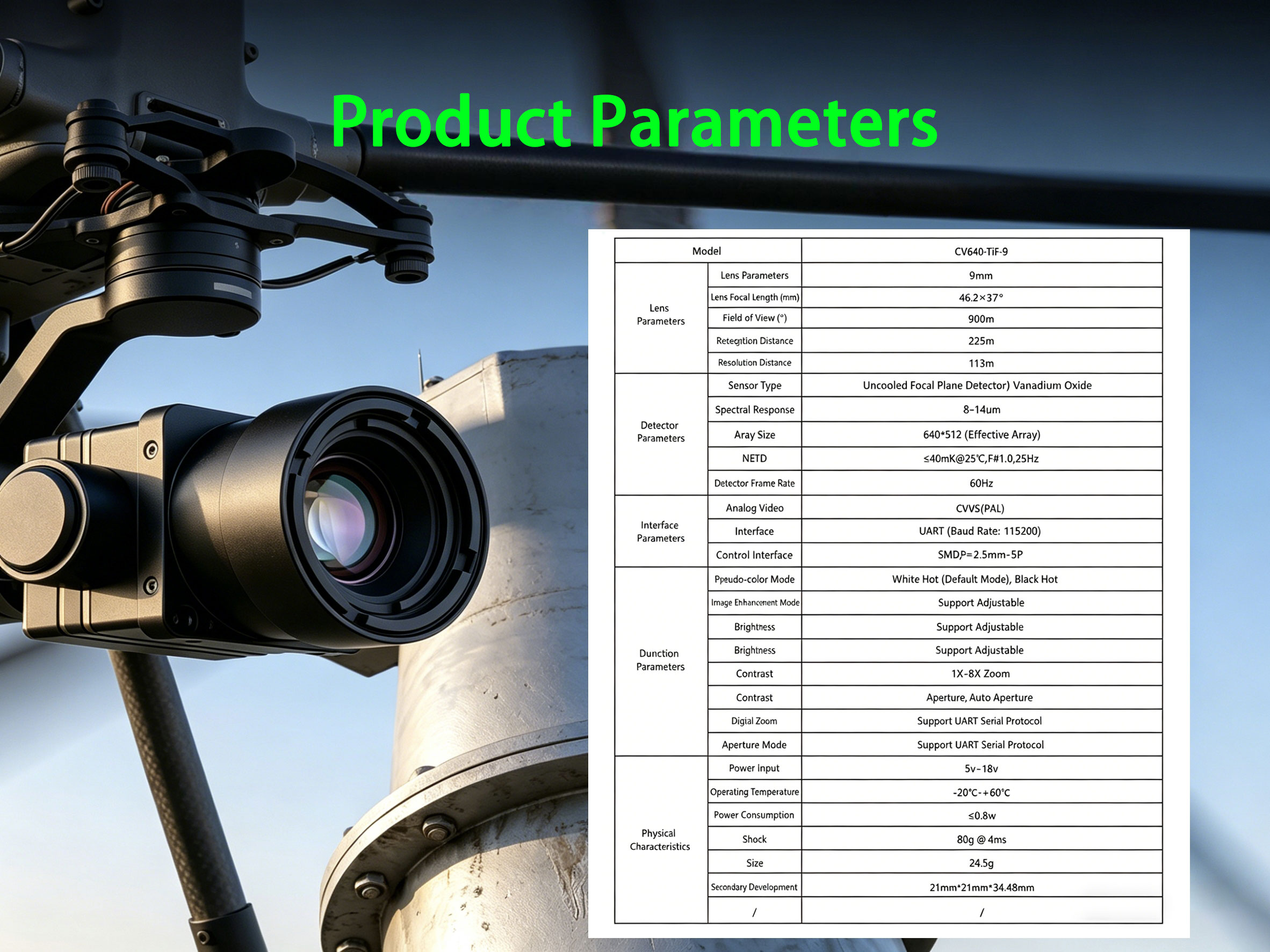

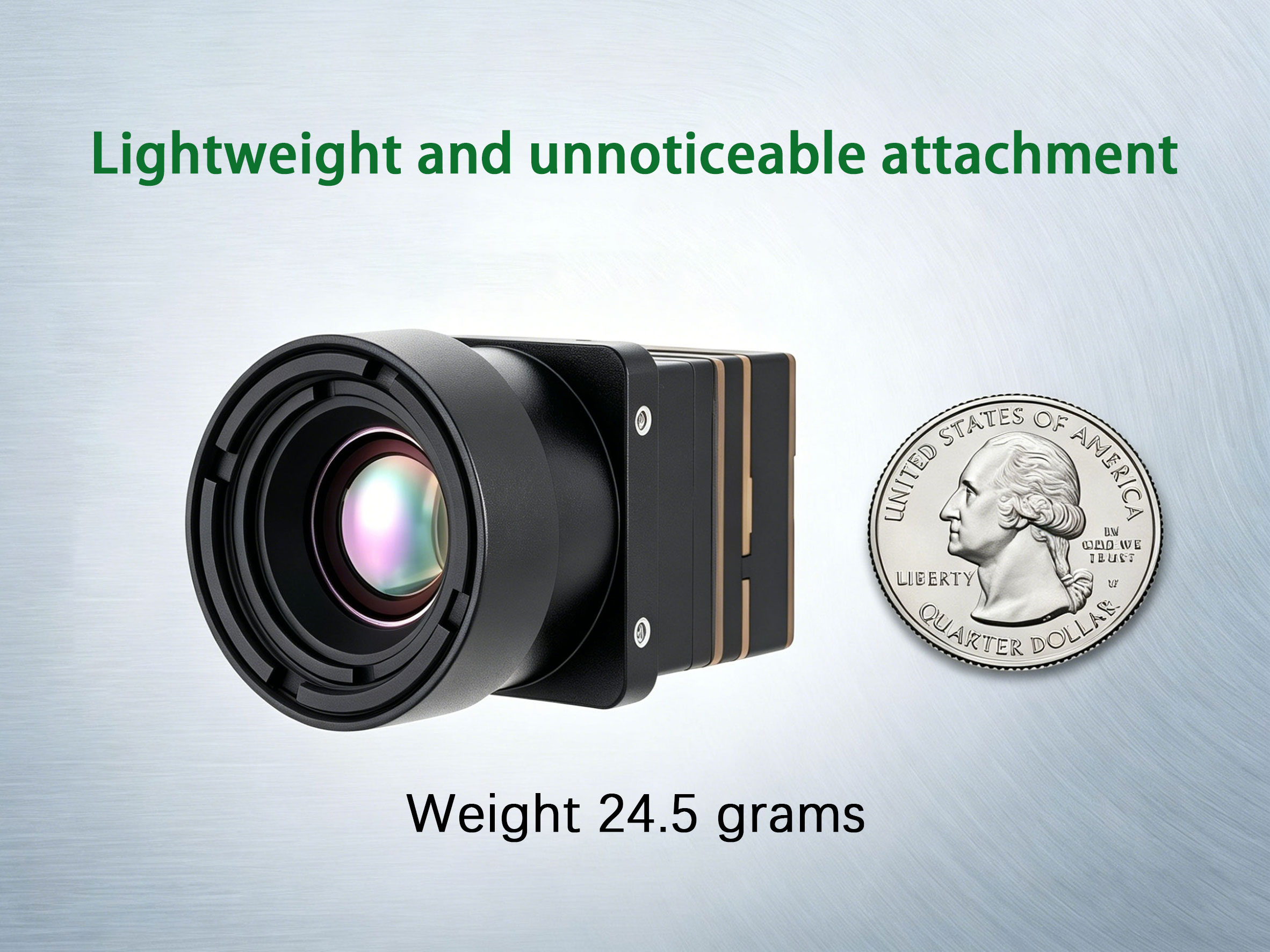

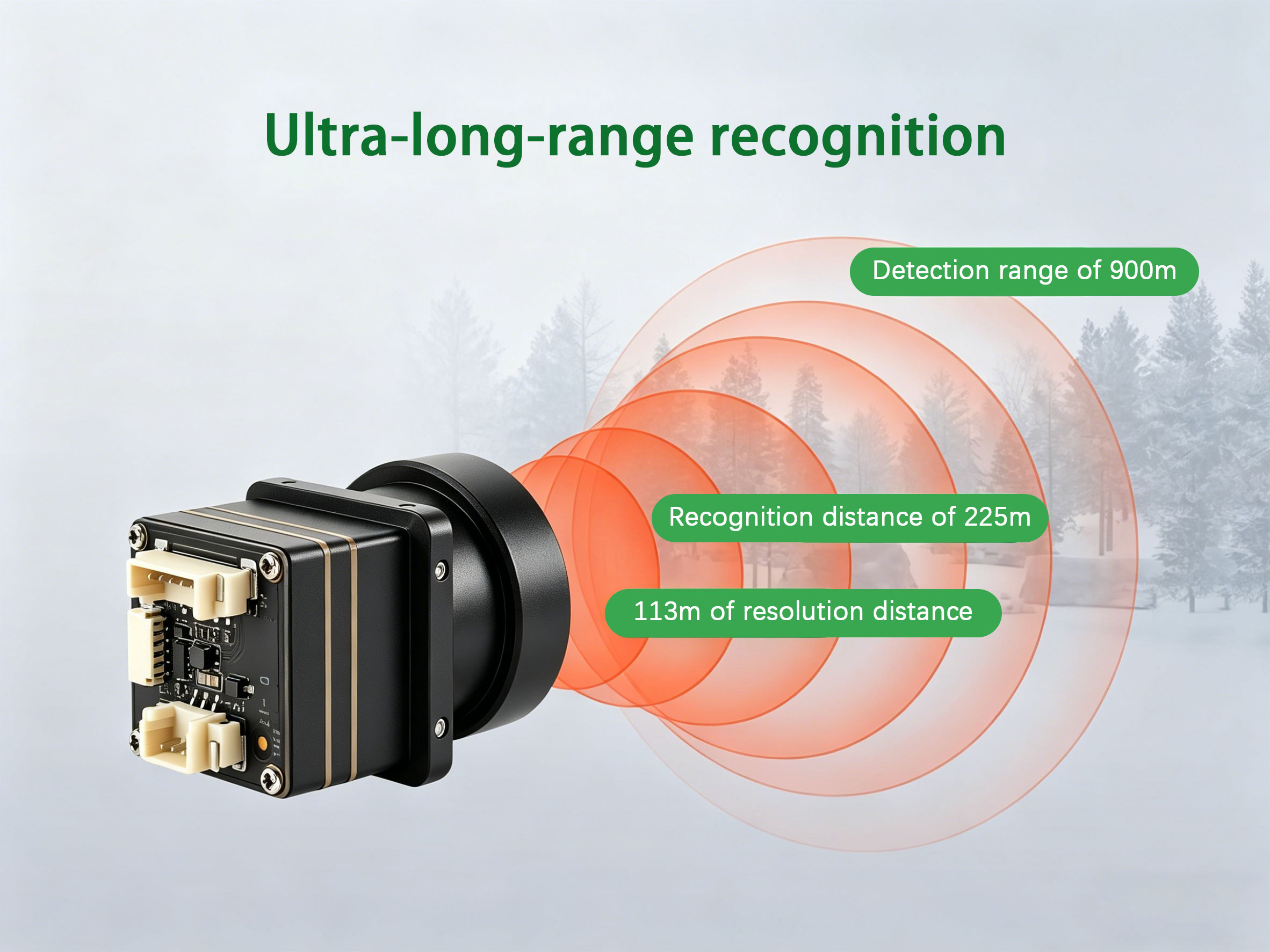

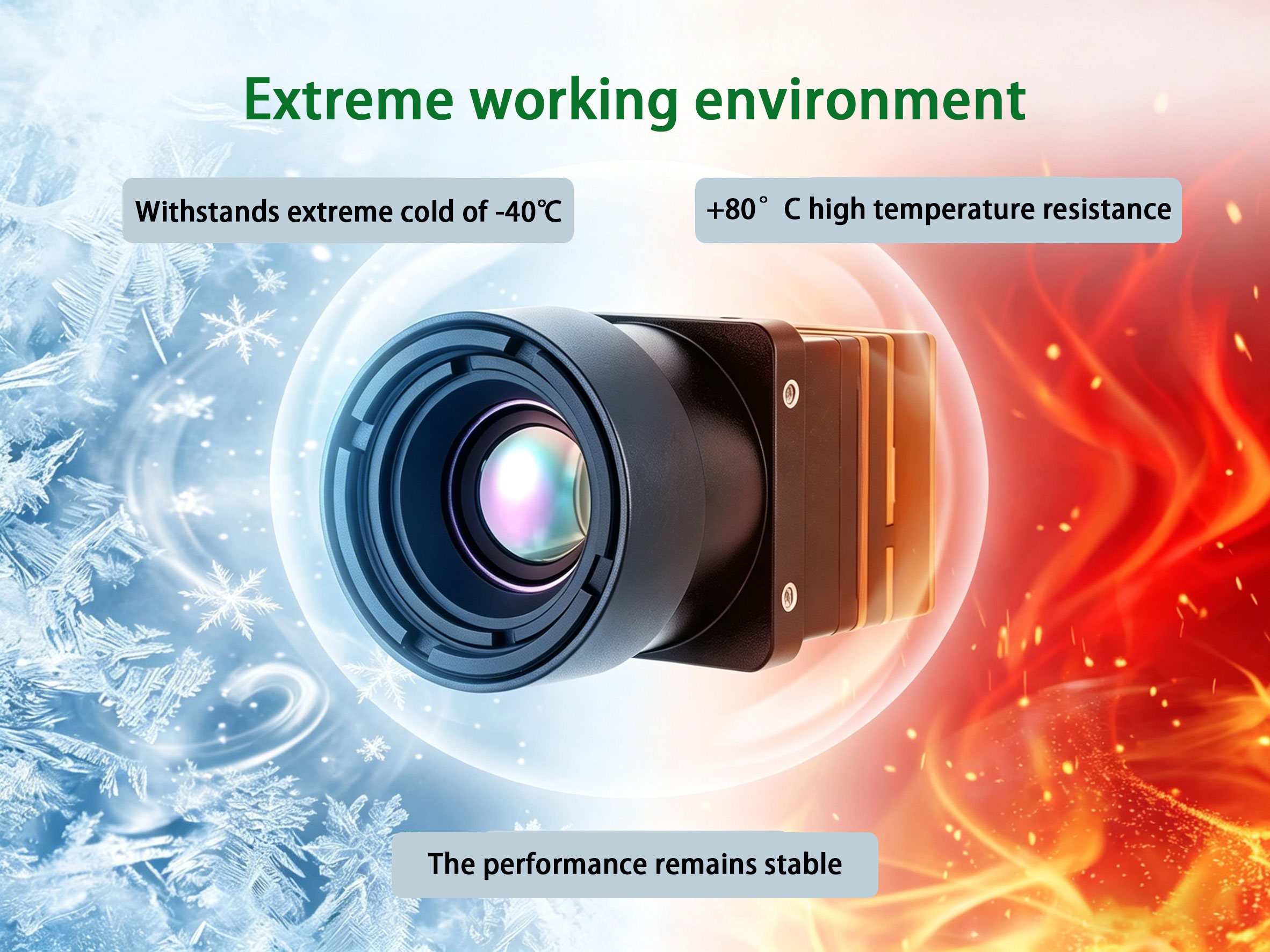

The lens parameters are as follows: Lens focal length mm: 9mm Field of view: 46.2°*37.7° Discovery distance: 900m Recognition distance: 225m Distance: 113m The detector parameters are as follows: Sensor type: Vanadium dioxide uncooled focal plane detector Spectral response: 8~14μm Array size: 640*512 (effective array) NETD：≤40mK@25°C,F#1.0,25Hz Detector frame rate: 60Hz The interface parameters are as follows: Analog image interface: CVBS (PAL system) Control interface: UART (Baud rate: 115200) Interface specification: SMD, P=1.25mm-5P The functional parameters are as follows: Pseudo-color mode: White heat (default mode), Black heat Image enhancement mode: adjustable support Brightness: Adjustable Contrast: Adjustable Electronic zoom: 1X~8X zoom Barrier mode: With barrier, automatic barrier setting Pot lid calibration: Supports UART serial port protocol Non-uniformity correction (NUC): Supports UART serial port protocol The physical characteristics are as follows: Power supply input: 5v~18v Operating temperature: -20°C to +60°C Power consumption: ≤0.8w Impact: 80g@4ms Weight: 24.5g Size: 21mm*21mm*34.48mm
